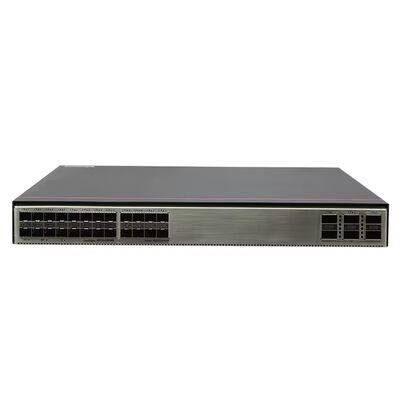

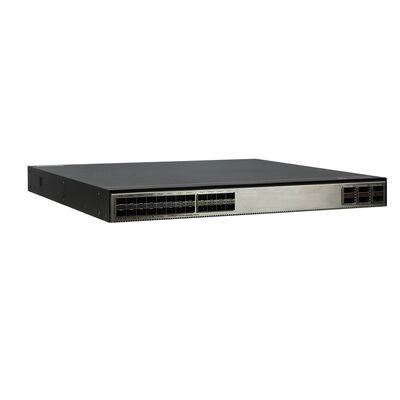

CloudEngine S6730-S24X6Q Enterprise Switch with 24 x 10 Gig SFP+ and 6 x 40 Gig QSFP+ Ports and 960Gbps Switching Capacity

CloudEngine S6730-S24X6Q Enterprise Switch with 24 x 10 Gig SFP+ and 6 x 40 Gig QSFP+ Ports and 960Gbps Switching Capacity

Model Number: S6730-S24X6Q
MOQ: 2
Price: $1,618-1,668
Detail Information
Place of Origin:
Beijing, China
Communication Mode:
Full-Duplex & Half-Duplex
Transmission Rate:
10/100/1000Mbps
Function:
LACP, POE, QoS, Stackable, VLAN Support
Ports:
24
Private Mold:
No
Products Status:
Stock
Highlight:

CloudEngine S6730-S24X6Q enterprise switch

,

24-port 10 Gig SFP+ network switch

,

6-port 40 Gig QSFP+ Ethernet switch

Product Description

Product Description
S6730-S24X6Q Specification
Model S6730-S24X6Q
Forwarding Performance 480 Mpps
Switching Capacity 960Gbps/2.4Tbps
Fixed ports 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm
Chassis height(U) 1U
Input voltage
(Power supply needs to be ordered seperately)
AC Power
• Rated AC voltage: 100V to 240V AC; 50/60 Hz
• Max. AC voltage: 90V to 290V AC; 45–65 Hz

DC Power
• Rated DC voltage: –48V~–60V
• Max. DC voltage: -38.4V DC~-72V DC
Input current AC 600W:Max 8A
DC 1000W:Max 30A
Maximum power consumption 225W
Minimum power consumption 88W
Operating temperature • 0–1800 m altitude: -5℃to 45℃
• 1800–5000 m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220 m.
Storage temperature -40-70℃
Operating altitude 5000 m
Noise (sound pressure at normal temperature)  65dB(A)
Surge protection specification AC power interface: differential mode: ±6kV: common mode: ±6kV
DC power interface: differential mode: ±2kV: common mode: ±4kV
Power supply type 600W AC Power
1000W DC Power
Relative humidity 5% to 95% (non-condensing)
Fans 4 , Fan modules are pluggable
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
