CE6856-48T6Q-HI Data Center Network Switch with 48 10G Ports 6 40G Ports and High-Performance Stacking

Name: CE6856-48T6Q-HI Data Center Network Switch with 48 10G Ports 6 40G Ports and High-Performance Stacking
Brand: Beijing Hui Tong High Tech Limited.
SKU: CE6856-48T6Q-HI
Price: 5.00 USD
Availability: InStock

Brand Name:	/
Model Number:	CE6856-48T6Q-HI
MOQ:	2
Price:	$5,975-6,155

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

10G Ports:

40G Ports:

Transmission Rate:

10/100/1000Mbps

Switch Capacity:

10g

Processor Speed:

1.2 GHz

DRAM Memory:

4 GB

NAND Flash:

1 GB

AC Input Voltage:

100 V AC To 240 V AC

DC Input Voltage:

-48 V DC To -60 V DC

Power Consumption:

346 W (max)

Operating Temperature:

0 °C To 40 °C

Storage Temperature:

-40 °C To +70 °C

Relative Humidity:

5% To 95%

Noise Level:

< 53 DBA

Surge Protection:

2 KV (Ethernet Ports)

Highlight:

CE6856-48T6Q-HI data center switch

48 10G optical ports switch

6 40G ports network switch

Product Description

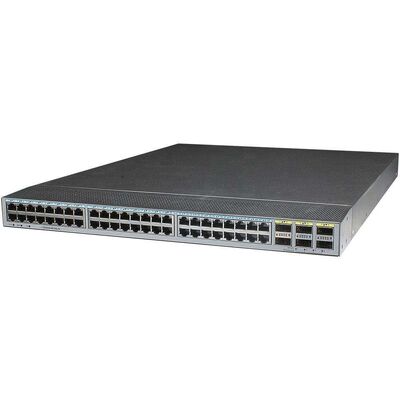

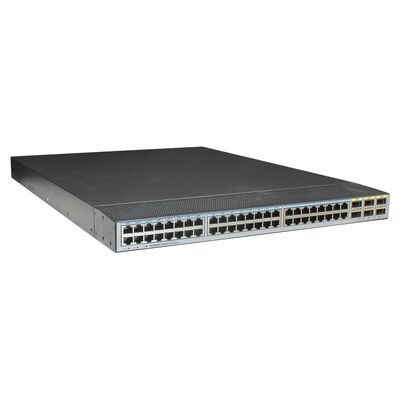

CloudEngine 6856-48T6Q-HI Data Center Switch

The CloudEngine 6850 series represents next-generation 10G Ethernet switches engineered for data centers and high-end campus networks. These switches deliver high-performance, high-density 10GE ports with low latency, featuring an advanced hardware architecture with 40GE uplink ports and industry-leading 10GE access port density.

Product Specifications

General Information

Product Model	CE6856-48T6Q-HI
Product Series	CloudEngine 6800 Series

Port Configuration

10GBASE-T Ethernet Ports	48 ports, RJ45 connectors, IEEE 802.3an/802.3az compliant, 100/1000M/10G auto-sensing, full-duplex, 100m max distance
40GE QSFP+ Optical Ports	6 ports, LC/MPO connectors, IEEE 802.3ba compliant, full-duplex
ETH Management Interfaces	2 combo ports with GE optical interface supporting FE SFP/eSFP
Console Interface	RJ45 connector, RS232 compliant, UART duplex, 9600-115200 baud rate

Performance Specifications

Processor	1.2 GHz quad-core
DRAM Memory	4 GB
NOR Flash	16 MB
NAND Flash	1 GB

Power Specifications

Power Source Type	AC/DC/High-Voltage DC
AC Power Input	100-240V AC, 50/60Hz (90-290V AC range)
DC Power Input	-48V to -60V DC (-38.4V to -72V DC range)
High-Voltage DC Input	240V DC (188-290V range) or 240-380V DC (188-400V range)
Power Consumption	Max: 346W, Typical: 219W
Heat Dissipation	Max: 1181 Btu/hr, Typical: 747 Btu/hr

Environmental Specifications

Operating Temperature	0°C to 40°C (32°F to 104°F) at 0-1800m altitude
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 95% noncondensing
Altitude	Up to 5000m (16404 ft)
Noise Level	< 53 dBA at 27°C

Reliability & Availability

Surge Protection	Ethernet: 2kV common mode; Power: 4kV common mode, 2.5kV differential (AC) / 2kV differential (DC)
Airflow	Front-to-back or back-to-front (configurable)
Power Module Backup	1+1 backup
Fan Module Backup	1+1 backup (3+1 fan redundancy)
Hot Swap Support	All power and fan modules
MTBF	54.48
MTTR	1.81

Frequently Asked Questions

Q: What's your advantages?

A: We are premium selected partner and a professional supplier in network equipment field more than seven years. We supply original products with good price to customers. We have professional sales team provide 24 hours free-consulting, and we also have professional technical team and after-sales department.

Q: What's the warranty of your products?

A: One year (except for the used products).

Q: What's the MOQ for your products?

A: 1 piece.

Q: What's the payment terms?

A: Pre T/T or PayPal or West Union or Alibaba Trade Assurance order.

Q: What's the package?

A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
