Cisco Catalyst 9300L 24-Port Gigabit Switch with 208Gbps Capacity

Name: Cisco Catalyst 9300L 24-Port Gigabit Switch with 208Gbps Capacity
Brand: Shanghai Apying Technology Co., Ltd.
SKU: C9300L-24T-4G-A
Price: 1.00 USD
Availability: InStock

Brand Name:	/
Model Number:	C9300L-24T-4G-A
MOQ:	2
Price:	$1,568-1,728

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Ports:

Transmission Rate:

10/100/1000Mbps

Dimensions:

1.73 X 17.5 X 17.7 Inches

Switching Capacity:

208 Gbps

Stacking Bandwidth:

688 Gbps

Forwarding Rate:

154.76 Mpps

MAC Addresses:

32,000

IPv4 Routes:

32,000

IPv6 Routes:

16,000

Multicast Routing:

8000

QoS Entries:

5120

ACL Entries:

5120

Packet Buffer:

16 MB / 32 MB

DRAM:

8 GB

Flash Memory:

16 GB

Highlight:

Cisco Catalyst 9300L 24-port switch

Gigabit switch with 208Gbps capacity

Cisco Catalyst 9300L networking switch

Product Description

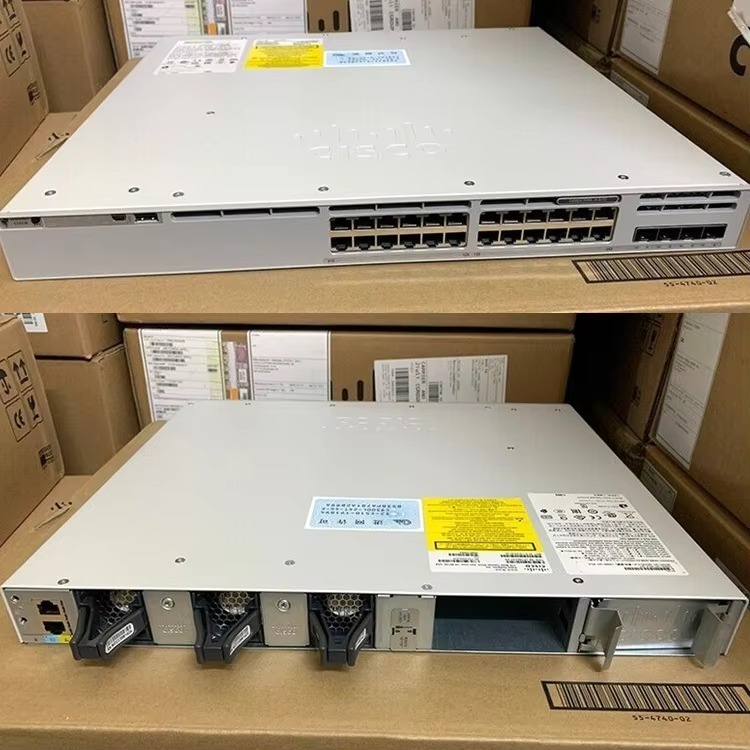

C9300L-24T-4G-A Catalyst 9300L 24p Data Network Advantage 4x1G Uplink Switch

Product Specifications

Model Number	C9300L-24T-4G-A
Description	Catalyst 9300 24 GE SFP Ports, modular uplink Switch
Port Configuration	24x 1G SFP
Uplink Configuration	Modular Uplinks
Dimensions	1.73 x 17.5 x 17.7 Inches
Stacking Technology	Cisco StackWise-480, Cisco StackPower
Power Supply	PWR-C1-715WAC-P/2 (default)
Performance	208 Gbps switching capacity 154.76 Mpps forwarding rate

Technical Specifications

Memory	8 GB DRAM, 16 GB Flash
Routing Capacity	32,000 IPv4 routes 16,000 IPv6 routes
Buffer Size	16 MB buffer for 24-port Gigabit Ethernet models
VLAN Support	4094 VLAN IDs 1000 Switched Virtual Interfaces
Jumbo Frames	9198 bytes
MTBF	284,130 hours

Certifications

Safety: UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
EMI: 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A
Environmental: ROHS 5 compliant

Contact Information

Contact Person	Jack Long
WhatsApp	008613310122788
WeChat/Tel	008613310122788

We offer competitive pricing and excellent after-sales service. Contact us for more information.

Packaging & Shipping

Fast delivery from our two large warehouses with products in stock. We minimize the time from order to delivery.
