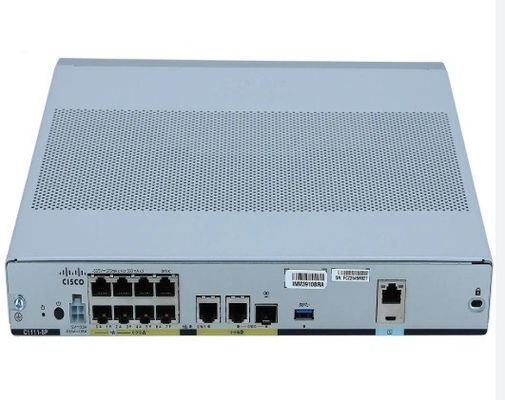

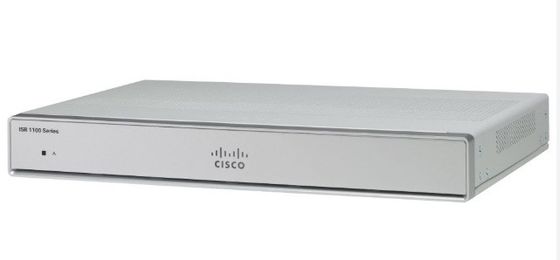

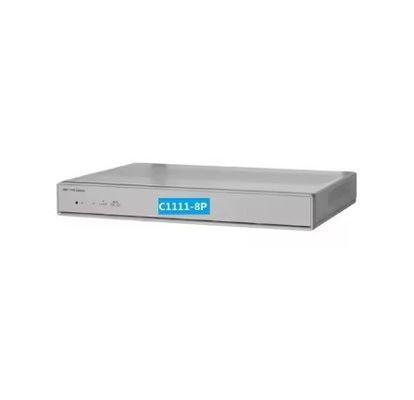

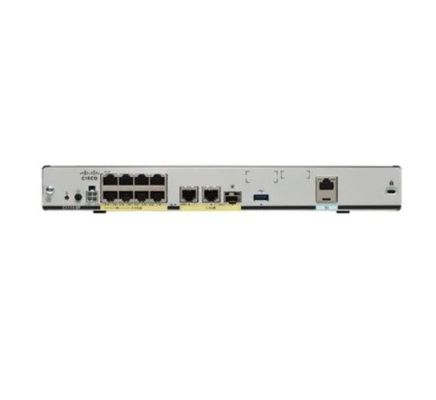

C1111-8P ISR 1100 Enterprise Router with 8 Ports Dual WAN and 1000Mbps Speed for Reliable Network Connectivity

Name: C1111-8P ISR 1100 Enterprise Router with 8 Ports Dual WAN and 1000Mbps Speed for Reliable Network Connectivity
Brand: Beijing Hui Tong High Tech Limited.
SKU: C1111-8P
Price: 1,092.00 USD
Availability: InStock

Brand Name:	/
Model Number:	C1111-8P
MOQ:	1
Price:	$1052-$1132
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

Enterprise Router

Use:

Enterprise/School/Shop/Mall

Network:

Wired LAN Port

Frequency:

2.4GHz

Interface:

Wired LAN Port

Speed:

1000Mbps

Power Source:

Highlight:

4 Ports Integrated Services Ethernet Router

C1111-8P ISR 1100 Enterprise Router

Dual WAN Integrated Services Ethernet Router

Product Description

C1111-8P ISR 1100 Enterprise Router

Product Overview

High-performance enterprise router with 8 ports, dual WAN connectivity, and integrated services Ethernet features designed for robust business networking.

Description	ISR 1100 8 Ports Dual GE WAN Ethernet Router

Technical Specifications

Physical Properties

Dimensions (H x W x D)

Non-LTE models: 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)

Weight with AC PS (without modules)

5.5 Lbs. (2.5 kg) maximum

AC Input Power

Input voltage

Universal 100 to 240 VAC

Frequency

50-60 Hz

Input current

PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum

Surge current

90 A peak and less than 8 Arms per half cycle

Ports & Connectivity

Micro USB Port

One RJ-45: Separate console port

USB port

USB 3.0 Type A host port
USB devices supported: USB flash memory

Console port

One USB 5-pin micro Type B: Console management connectivity

10/100/1000 Gigabit Ethernet

Two GE ports allocated among RJ45 and SFP as:
One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0)
One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)

Wireless VLANs

32 (encrypted and non-encrypted VLANs)

Wireless specifications

2x2 .11ac Wave 2

Default and maximum DRAM

4GB

Default and maximum flash

4GB

Inline PoE

4 ports for -8P PIDs, 2 ports for -4P PIDs
802.3af-compliant PoE or 802.3at-compliant PoE+

Design Features

Acoustic for 1100 Series ISRs

Not Applicable - Fanless design

Environmental Specifications

Operating humidity

5 to 85% relative humidity

Operating temperature

32 to 104 °F (0 to 40°C) Sea Level;
32 to 77 °F (0°C to 25°C) at 10,000 ft
1.5 °C derating per 1000 ft

Altitude in China

0-6560 ft (0-2000 m)

Altitude in all other countries

0-10,000 ft (0-3050 m)

Transportation and Storage

Nonoperating temperature

-40 to 158 °F (-40 to 70°C)

Nonoperating humidity

5 to 95% relative humidity (noncondensing)

Nonoperating altitude

0 to 15,000 ft (0 to 4570m)
