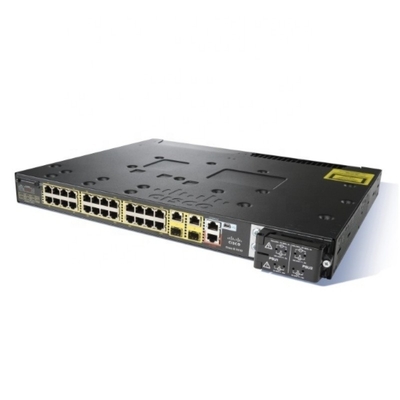

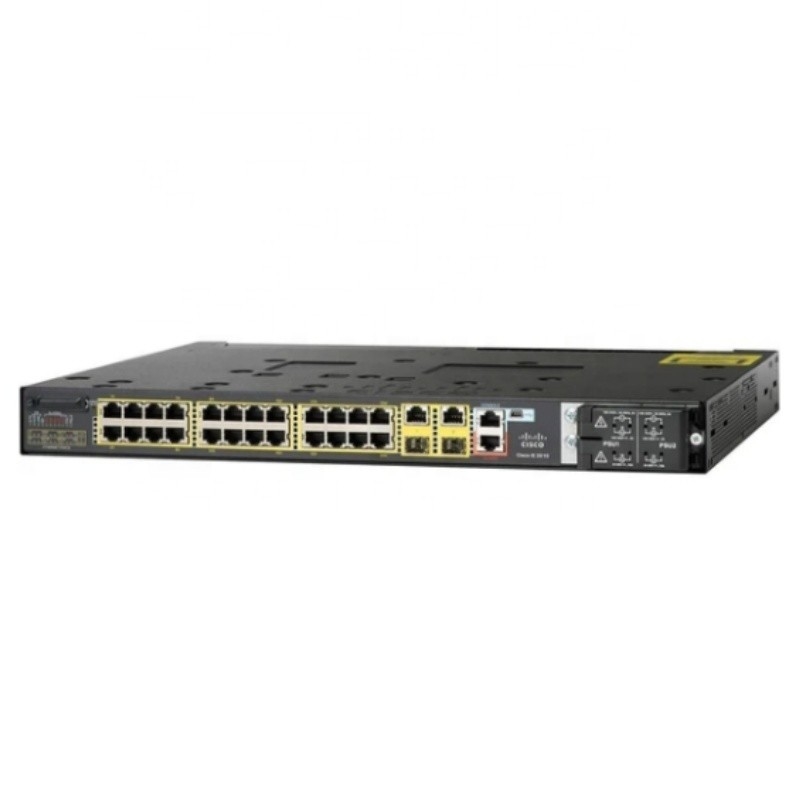

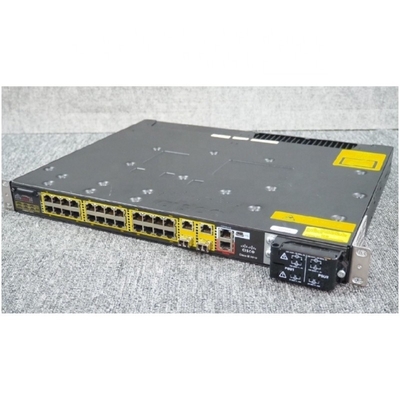

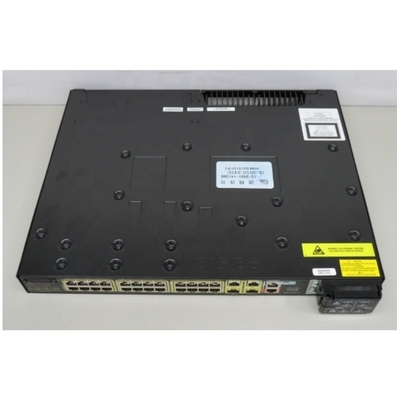

New Original IE-3010-24TC SWITCH Managed 16 X 100 Mbit SFP + 8 X 10/100/1000 + 2 X Combo Gigabit SFP, Rack-mountable, PoE

Price:	CN¥20,007.23/units >=1 units

Detail Information

Product Description

Detail Information

Private Mold:

Products Status:

Stock

Ports:

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP, Stackable

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

10g

Brand Name:

Model Number:

IE-3010-24TC

Place Of Origin:

Shanghai, China

Highlight:

PoE Managed Switch

Rack-mountable Managed Switch

Product Description

IE-3010-24TC

Specifications

Connectors and cabling	10/100 ports: 10/100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling 100FX SFP ports (IE-3010-16S-8PC only): 100BASE-FX, -LX, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single mode) Gigabit ports: 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP/STP cabling 1000BASE-SX, -LX/LH, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single-mode fiber) Console ports: Management console port: RJ45 connector for serial connection Management console port: USB mini type B connector for USB connection
Indicators	Per-port status LEDs: Link integrity, port disabled, and activity indications System-status LED: System activity, system integrity, Alarm-in status LEDs: Four alarm inputs status indicator Alarm-out status LED: Alarm status indicator Power supply unit LED: Power output integrity and power supply presence PoE (IE-3010-16S-8PC only): PoE activity, PoE integrity, and PoE disabled SD Flash LED: SD flash integrity and SD flash presence RS232 LED: RS232 console selection USB LED: USB console selection
Environmental ranges	-40 F to 140F (-40 to +60C) continuous operating temperature range -40 F to 185F (-40 to +85C) type test for 16 hours at 85C Operating altitude: 3000 m (9843 ft) at 40C (104F) Operating relative humidity: 5% to 95% noncondensing
Storage and transportation	Temperature: -40 F to 185F (-40 to +85 C) Altitude: 15,000 ft (4570 m) Relative humidity: 5% to 95% noncondensing
Mean time between failure (MTBF)	Cis-co IE-3010-24TC: 207,731 hrs Cis-co IE-3010-16S-8PC: 230,112 hrs
