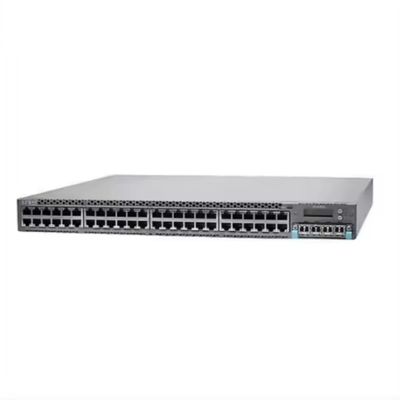

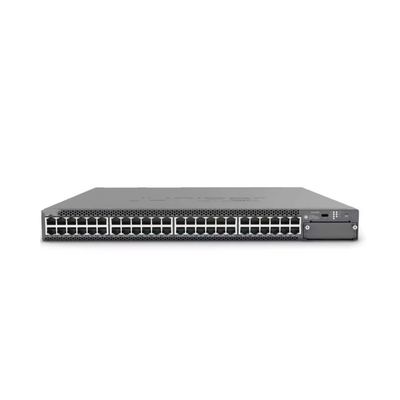

QFX5120 Series Network Switch with 48X25G and 8X100G Ports AES256 Encryption for High-Speed Data Transfer

Name: QFX5120 Series Network Switch with 48X25G and 8X100G Ports AES256 Encryption for High-Speed Data Transfer
Brand: Beijing Hui Tong High Tech Limited.
SKU: QFX5120-48YM-AFI
Price: 6,632.00 USD
Availability: InStock

Model Number:	QFX5120-48YM-AFI
MOQ:	1
Price:	$6352-$6912
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

QFX5120-48YM-AFI

Place Of Origin:

Shanghai, China

Size:

Customized Size

Device Type:

SWITCH

Suitable For:

Workstation, Laptop, Desktop

Condition:

100%Original

Highlight:

QFX5120-48YM-AFI network switch

48X25G 8X100G networking switch

QFX5120 Series Switch with AES256

Product Description

QFX5120 Series Switch with AES256 Encryption

High-performance network switch featuring 48x25G downlink ports and 8x100G uplink ports with advanced security and Quality of Service capabilities.

Model Comparison Specifications

Specification	QFX5120-48Y	QFX5120-48YM	QFX5120-48T	QFX5120-32C
Dimensions (H x W x D)	1.72 x 17.36 x 20.48 in. (4.37 x 44.09 x 52.02 cm)	1.72 x 17.36 x 20.48 in. (4.37 x 44.09 x 52.02 cm)	1.72 x 17.36 x 20.48 in. (4.37 x 44.09 x 52.02 cm)	1.7 x 17.26 x 20.27 in. (4.32 x 43.84 x 51.5 cm)
Weight	23.7 lb (10.75 kg)	24.8 lb (11.25 kg)	24.25 lb (11 kg)	21.12 lb (9.58 kg)
Switching Capacity	4 Tbps (bidirectional) 1.31 Bpps	4 Tbps (bidirectional) 1.31 Bpps	2.16 Tbps (bidirectional) 1001.7 Mpps	6.4 Tbps (bidirectional) 2 Bpps
Switching Mode	Cut-through and store-and-forward	Cut-through and store-and-forward	Cut-through and store-and-forward	Cut-through and store-and-forward
Power Consumption	Max: 450 W Typical: 260 W	Max: 650 W Typical: 550 W	Max: 450 W Typical: 300 W	Max: 515 W Typical: 380 W

Interface Options by Model

QFX5120-48Y: 2 management ports (RJ-45), 48x1GbE SFP, 48/80x10GbE SFP+, 48/80x25GbE SFP, 8x40GbE QSFP+, 8x100GbE QSFP28

QFX5120-48YM: 2 management ports (RJ-45), 48x1GbE SFP, 48/56x10GbE SFP+, 48/56x25GbE SFP, 8x40GbE QSFP+, 8x100GbE QSFP28

QFX5120-48T: 1 management port (RJ-45), 48x1GbE RJ45, 6x40GbE QSFP+, 6x100GbE QSFP28

QFX5120-32C: 1 RJ-45 management port, 2x10GbE SFP+, 124x25GbE SFP, 32x40GbE QSFP+, 32x100GbE QSFP28

Common Features Across All Models

1 USB 2.0 port
1 RS-232 console port
Supported transceiver and direct attach cable compatibility
QSFP+ DAC cables: 1/3 m twinax copper
QSFP+ optics: SR4, LX4, ESR4, ER4, LR4
QSFP28 optics: SR4, ER4, PSM4, CWDM4, LR4
Rack installation kit included
Versatile four post mounting options for 19-in server rack or datacom rack
