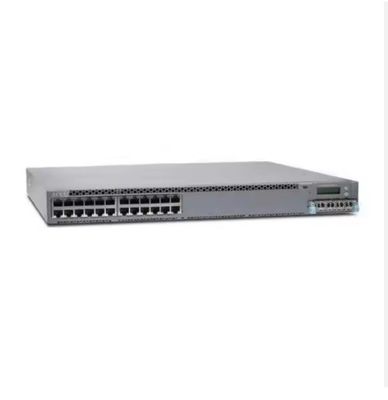

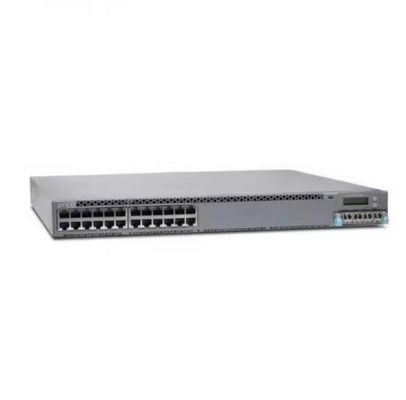

EX4300-24P 24-Port 10/100/1000Mbps Ethernet Switch with 715W PoE+ Power and Virtual Chassis Technology

Name: EX4300-24P 24-Port 10/100/1000Mbps Ethernet Switch with 715W PoE+ Power and Virtual Chassis Technology
Brand: Beijing Hui Tong High Tech Limited.
SKU: EX4300-24P
Price: 1,751.00 USD
Availability: InStock

Model Number:	EX4300-24P
MOQ:	1
Price:	$1716-$1786
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

EX4300-24P

Place Of Origin:

Shanghai, China

Size:

50*60*37 Cm

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

24-port PoE-plus networking switch

715W AC power switch

customizable 10/100/1000BASE-T switch

Product Description

EX4300-24P 24-Port 10/100/1000BASE-T PoE-plus 715W AC PS Switch

Customized EX4300-24P Network Switch Enterprise-class PoE Internet Equipment. High-performance enterprise network switch featuring 24-port 10/100/1000BASE-T PoE+ connectivity with advanced switching capabilities and Virtual Chassis technology.

Product Specifications

Description	Juniper EX4300 switch with 24-port 10/100/1000BASE-T PoE-plus + 715 W AC PS (provides 565 W PoE+ power)
Form Factor	Fixed platform
Dimensions (W x H x D)	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit
Backplane Speed	320 Gbps (Virtual Chassis)
Data Rate	448 Gbps
Throughput	333 Mpps (wire speed)
40GBASE QSFP+ Port Densities	4 per switch Up to 20 in Virtual Chassis configuration
100GBASE CFP Port Densities	N/A
Operating System	Junos OS
Traffic Monitoring	sFlow
Quality-of-Service (QoS) Queues/Port	12
MAC Addresses	64,000
Jumbo Frames	9216 bytes
IPv4 Unicast/Multicast Routes	32,000/8,000
IPv6 Unicast/Multicast Routes	18,000/4,000
Number of VLANs	4,093
ARP Entries	64,000

Advanced Features

Virtual Chassis configuration supporting up to 10 switches
Full-duplex and half-duplex communication support
Internal, hot-swappable redundant power supply
Field-replaceable fans for easy maintenance
Graceful Routing Engine switchover (GRES) in Virtual Chassis configuration
