S5735-L24P4S-A1 24 Ports Gigabit PoE Network Switch with Full-Duplex & Half-Duplex Communication Mode

Name: S5735-L24P4S-A1 24 Ports Gigabit PoE Network Switch with Full-Duplex & Half-Duplex Communication Mode
Brand: Beijing Hui Tong High Tech Limited.
SKU: S5735-L24P4S-A1
Price: 1.00 USD
Availability: InStock

Model Number:	S5735-L24P4S-A1
Price:	CN¥2,478.32/pieces 1-1 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

S5735-L24P4S-A1

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

24 port PoE gigabit switch

enterprise-class network switch

full-duplex half-duplex communication switch

Product Description

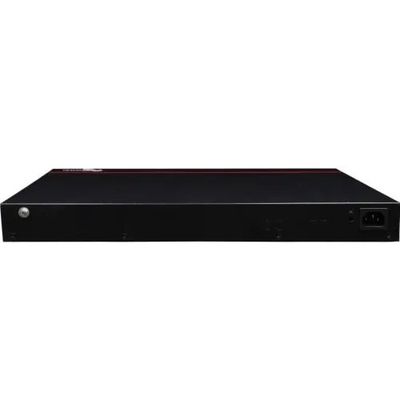

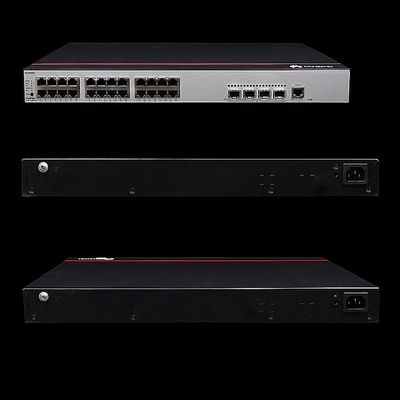

S5735-L24P4S-A1 24-Port Gigabit PoE+ Switch

Enterprise-class network switch featuring 24 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) support and full-duplex/half-duplex communication modes.

Product Specifications

Model	S5735-L24P4S-A1
Description	24×10/100/1000BASE-T ports, 4×GE SFP ports, PoE+, AC power
Dimensions (without packaging)	Basic: 43.6 mm × 442.0 mm × 220.0 mm (1.72 in. × 17.4 in. × 8.7 in.) Maximum: 43.6 mm × 442.0 mm × 227.0 mm (1.72 in. × 17.4 in. × 8.94 in.)
Dimensions (with packaging)	90.0 mm × 550.0 mm × 360.0 mm (3.54 in. × 21.65 in. × 14.17 in.)
Weight	Without packaging: 2.94 kg (6.48 lb) With packaging: 3.91 kg (8.62 lb)
Chassis Height	1U

Power & Thermal Specifications

Typical Power Consumption	41.7 W
Typical Heat Dissipation	142.29 BTU/hour
Maximum Power Consumption	Without PoE: 53.2 W 100% PoE loads: 433.2 W (PoE: 380 W)
Maximum Heat Dissipation	Without PoE: 181.52 BTU/hour 100% PoE loads: 1478.12 BTU/hour

Reliability & Environmental

MTBF	55.72 years
MTTR	2 hours
Availability	>0.99999
Noise Level	Acoustic power: 50 dB(A) Acoustic pressure: 38.2 dB(A)

Operating Conditions

Long-term Operating Temperature	-5°C to +50°C (23°F to 122°F) at 0-1800 m (0-5906 ft.)
Short-term Operating Temperature	-5°C to +55°C (23°F to 131°F) at 0-1800 m (0-5906 ft.)
Storage Temperature	-40°C to +70°C (-40°F to 158°F)
Operating Humidity	5% to 95% RH, non-condensing
Operating Altitude	0-5000 m (0-16404 ft.)

Temperature Operation Notes:

Temperature decreases by 1°C (1.8°F) per 220 m (722 ft.) above 1800 m altitude
Maximum 96 consecutive hours over 50°C (122°F) per year
Maximum 360 total hours over 50°C (122°F) per year
Maximum 15 occurrences over 50°C (122°F) per year
Cannot start below 0°C (32°F)
Optical module distance limited to 10 km in extreme conditions

Technical Specifications

Power Supply	AC built-in
Input Voltage	AC: 100-240 V AC, 50/60 Hz (90-290 V AC, 45-65 Hz range) High-Voltage DC: 240 V DC (190-290 V DC range)
Memory	512 MB RAM, 512 MB Flash
Console Port	RJ45
Surge Protection	Service port: ±7 kV common mode Power supply: ±6 kV differential mode, ±6 kV common mode

Physical Configuration

Card Slots	0
Power Slots	0
Fan Modules	2
Redundant Power Supply	Not supported
Heat Dissipation	Fan-based with intelligent speed adjustment
Airflow	Intake from left and front, exhaust from right

Features & Certifications

Power over Ethernet (PoE) Support
EMC Certification
Safety Certification
Manufacturing Certification
