Customizable Gigabit Ethernet Switch with 8 10/100/1000Base-T Ports and High Capacity

Name: Customizable Gigabit Ethernet Switch with 8 10/100/1000Base-T Ports and High Capacity
Brand: Beijing Hui Tong High Tech Limited.
SKU: S5735-L8T4S-A1
Price: 385.00 USD
Availability: InStock

Model Number:	S5735-L8T4S-A1
MOQ:	1
Price:	$360-$410
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≤ 8

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

S5735-L8T4S-A1

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

Customizable Gigabit Ethernet Switch 8 ports

S5 73 5 Series networking switch

High capacity 10/100/1000Base-T switch

Product Description

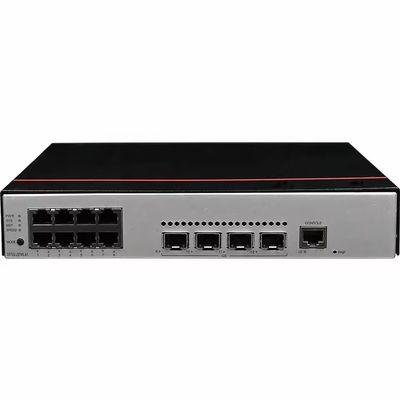

S5735-L8T4S-A1 Gigabit Ethernet Switch

High-performance, customizable network switch with 8 copper ports and 4 SFP ports, designed for reliable industrial and enterprise networking applications.

Product Specifications

Model	S5735-L8T4S-A1
Part Number	98011284, 98011284-001
Port Configuration	8 × 10/100/1000BASE-T ports, 4 × GE SFP ports
Power Supply	AC power
First Supported Version	V200R020C10

Physical Dimensions

Dimensions without Packaging	Basic: 43.6 mm × 250.0 mm × 180.0 mm (1.72 in. × 9.84 in. × 7.1 in.) Maximum: 43.6 mm × 250.0 mm × 187.0 mm (1.72 in. × 9.84 in. × 7.36 in.)
Dimensions with Packaging	90.0 mm × 370.0 mm × 380.0 mm (3.54 in. × 14.57 in. × 14.96 in.)
Chassis Height	1U
Weight without Packaging	1.38 kg (3.04 lb)
Weight with Packaging	2.02 kg (4.45 lb)

Power & Thermal Specifications

Typical Power Consumption	21.2 W
Typical Heat Dissipation	72.34 BTU/hour
Maximum Power Consumption	26.3 W
Maximum Heat Dissipation	89.74 BTU/hour
Heat Dissipation Mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow Direction	Air intake from left and front, air exhaustion from right

Environmental Specifications

Operating Temperature	-5°C to +50°C (23°F to 122°F) - 0 m to 1800 m altitude, non-industrial optical modules -5°C to +55°C (23°F to 131°F) - 0 m to 1800 m altitude, industrial optical modules (≤10 km) -5°C to +45°C (23°F to 113°F) - optical modules with transmission distances ≥70 km
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Operating Relative Humidity	5% to 95%, noncondensing
Operating Altitude	0-5000 m (0-16404 ft.)
Storage Altitude	0-5000 m (0-16404 ft.)

Temperature decreases by 1°C (1.8°F) per 220 m (722 ft.) increase above 1800 m altitude. Unit cannot start below 0°C (32°F).

Technical Specifications

Memory	512 MB
Flash Memory	512 MB
Console Port	RJ45
MTBF	71.82 years
MTTR	2 hours
Availability	>0.99999
Noise Level	43 dB(A) acoustic power, 31.5 dB(A) acoustic pressure

Power & Protection

Power Supply Mode	AC built-in
Rated Input Voltage	100 V AC to 240 V AC, 50/60 Hz
Input Voltage Range	90 V AC to 290 V AC, 45 Hz to 65 Hz
Service Port Surge Protection	±7 kV common mode
Power Supply Surge Protection	±6 kV differential mode, ±6 kV common mode

Features & Capabilities

Built-in fan module with intelligent speed control
Console port for management access
High reliability with MTBF of 71.82 years
Comprehensive surge protection on service and power ports
Wide operating temperature range for various environments

Not supported: PoE, RPS input, USB, RTC, Ethernet management port, redundant power supply

Certifications

EMC certification
Safety certification
Manufacturing certification
