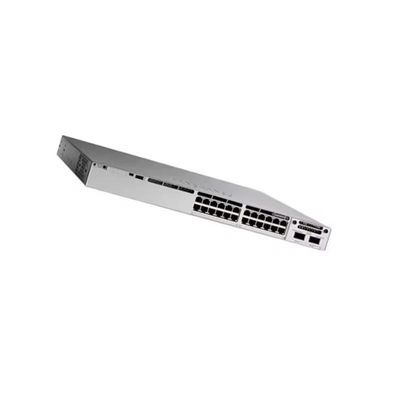

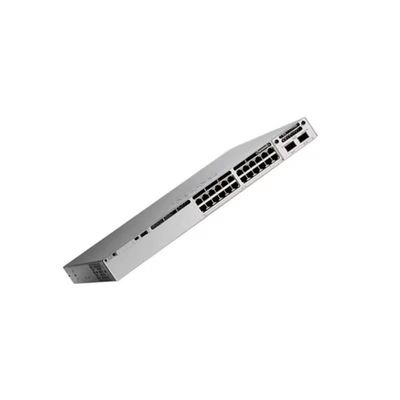

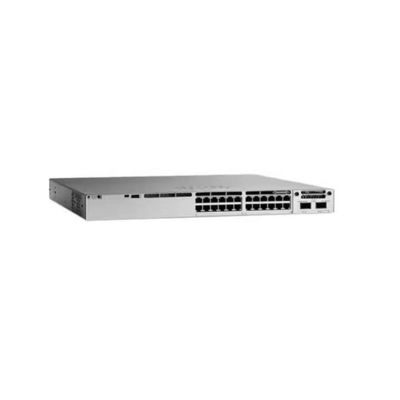

24-port Data Switch with 4x10G Uplink and Network Essentials for High-Speed Networking

Name: 24-port Data Switch with 4x10G Uplink and Network Essentials for High-Speed Networking
Brand: Beijing Hui Tong High Tech Limited.
SKU: C9200L-24T-4X-E
Price: 1,497.00 USD
Availability: InStock

Model Number:	C9200L-24T-4X-E
MOQ:	1
Price:	$1452-$1542
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

C9200L-24T-4X-E

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

24-port data switch with 10G uplink

customized networking switch C9200L

24-port switch with warranty

Product Description

Switch Capacity 24-port Customized Data Switch with 4x10G Uplink Network Essentials C9200L-24T-4X-E

Product Overview

The C9200L-24T-4X-E is a high-performance 24-port network switch designed for enterprise environments, featuring advanced switching capabilities and robust connectivity options.

Key Specifications

Downlink Ports	24 x 10/100/1000 or PoE+ copper ports (data)
Uplink Configuration	4 x 10G fixed uplinks
Power Supply	Default primary AC power supply PWR-C5-125WAC
Cooling System	Fixed redundant fans
Software	Network Essentials
Chassis Dimensions	1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm)

Performance & Capacity

Switching Capacity: 128 Gbps

Forwarding Rate: 190.4 Mpps

Stacking Bandwidth: 80 Gbps

Jumbo Frames Support: 9198 bytes

Advanced Features

Virtual Networks: 1
Total MAC Addresses: 16,000
IPv4 Routes: 11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 Routing Entries: 3,000
IPv6 Routing Entries: 1,500
Multicast Routing Scale: 1,000
QoS Scale Entries: 1,000
ACL Scale Entries: 1,500
Flexible NetFlow (FNF) Entries: 16,000 flows
VLAN IDs: 1,024
Total Switched Virtual Interfaces (SVIs): 512

Hardware Specifications

DRAM	2 GB
Flash Memory	4 GB
Packet Buffer	6 MB buffers for 24-port Gigabit Ethernet models
Mean Time Between Failures	525,990 hours
Wireless Bandwidth	N/A
