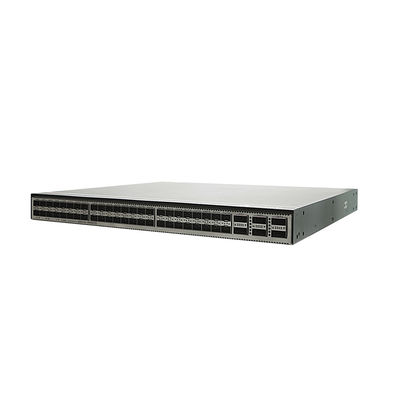

CE6881H-48S6CQ 48-Port 10GE SFP and 6-Port 100GE QSFP28 Data Center Switch with 3.2Tbps Switching Capacity

Name: CE6881H-48S6CQ 48-Port 10GE SFP and 6-Port 100GE QSFP28 Data Center Switch with 3.2Tbps Switching Capacity
Brand: Beijing Hui Tong High Tech Limited.
SKU: CE6881H-48S6CQ
Price: 2,901.00 USD
Availability: InStock

Model Number:	CE6881H-48S6CQ
MOQ:	1
Price:	$2816-$2986
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

CE6881H-48S6CQ

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

48-port 10GE SFP data center switch

6-port 100GE QSFP28 networking switch

high-speed data transfer switch for data-intensive applications

Product Description

CE6881H-48S6CQ 48-Port 10GE SFP and 6-Port 100GE QSFP28 Data Center Switch

Product Overview

High-performance data center switch designed for data-intensive applications, featuring advanced networking capabilities and robust reliability.

Key Specifications

Model Number	CloudEngine 6881H-48S6CQ-F
Port Configuration	48× 25G SFP28 + 6× 100G QSFP28 + 2× 400G QSFP-DD
Switching Capacity	3.2 Tbps
Forwarding Rate	2.4 Bpps
Buffer Memory	64MB Shared
Power Supply	Dual Hot-Swap (AC 100-240V/DC -48V, 1200W)

Technical Features

Layer 3 Routing: BGP, OSPF, IS-IS, VXLAN, EVPN, SRv6
Virtualization: Multi-chassis stacking (up to 4 units)
Quality of Service: 8 queues per port, PFC, ECN
Management: NETCONF/YANG, Telemetry, CLI, Web interface
Redundant Power Supply: 1+1 backup configuration
Heat Dissipation: Air cooling with automatic fan speed adjustment

Physical Specifications

Dimensions: 43.6mm × 442mm × 520mm (1U)

Weight: ≤12kg (full configuration)

Operating Temperature: 0°C to 45°C (32°F to 113°F)

Humidity: 5% to 95% non-condensing

Form Factor: 1U Rack Mountable

Power & Thermal Performance

Power Consumption	≤200W (Typical) / ≤400W (Maximum)
Heat Dissipation	≤1191 BTU/hour (Maximum)
MTBF	45.9 years
Availability	0.9999960856

Certifications & Compliance

CE, FCC, UL, RoHS
NEBS Level 3
Compliance with safety, EMC, and environmental standards

Note: 10GE ports can be configured to work at 1 Gbit/s. Ports 13-16 and 25-28 can be configured to work at 10 Gbit/s or 1 Gbit/s using commands, and the speed of other ports can be auto-negotiated based on optical modules. 10GE LRM/80 km linear optical modules are not supported.
