1200 Mbps 2.4G Wi-Fi ISR 1100 4 Ports Dual GE WAN Ethernet Router with Private Mold for Networking Needs

Name: 1200 Mbps 2.4G Wi-Fi ISR 1100 4 Ports Dual GE WAN Ethernet Router with Private Mold for Networking Needs
Brand: Beijing Hui Tong High Tech Limited.
SKU: C1111-4P
Price: 510.00 USD
Availability: InStock

Model Number:	C1111-4P
MOQ:	1
Price:	$495-$525
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

With Modem Function:

Yes

Standards And Protocols:

Wi-Fi 802.11ac, Wi-Fi 802.11n, Wi-Fi 802.11b, Wi-Fi 802.11g

Wi-fi Supported Frequency:

2.4G & 5G

Supports Wds:

Yes

Supports Wps:

Yes

Wi-fi Transmission Standard:

802.11b

Wired Transfer Rate:

10/100/1000Mbps

2.4g Wi-fi Transmission Rate:

1200 Mbps

Encryption Type:

WPA2

Private Mold:

Yes

Products Status:

New

Type:

With 5G Sim Card

Application:

Function:

SDK Available

Lan Ports:

Antennas:

2 External Antennas

Wan Ports:

1 X10/100/1000Mbps

Brand Name:

Place Of Origin:

Shanghai, China

5g Wi-fi Transmission Rate:

1000Mbps

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

1200 Mbps dual WAN router

4 port Ethernet router

2.4g Wi-Fi networking router

Product Description

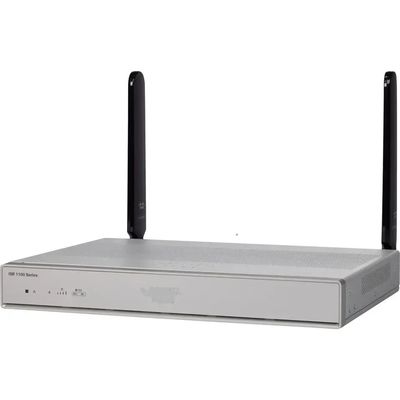

Cisco C1111-4P ISR 1100 Router Overview

The C1111-4P ISR 1100 is a high-performance 4-port dual Gigabit Ethernet WAN router featuring 1200 Mbps 2.4GHz Wi-Fi transmission rates, designed to meet demanding networking requirements for business and industrial applications.

Technical Specifications

Physical Properties

Description	ISR 1100 4 Ports Dual GE WAN Ethernet Router
Dimensions (H x W x D)	Non-LTE models: 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)
Weight with AC PS (w/o modules)	5.5 Lbs. (2.5 kg) maximum

AC Input Power

Input voltage	Universal 100 to 240 VAC
Frequency	50-60 Hz
Input current	PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum
Surge current	90 A peak and less than 8 Arms per half cycle

Ports & Connectivity

Micro USB Port	One RJ-45: Separate console port
USB port	USB 3.0 Type A host port USB devices supported: USB flash memory
Console port	One USB 5-pin micro Type B: Console management connectivity
10/100/1000 Gigabit Ethernet	Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)
Wireless VLANs	32 (encrypted and non-encrypted VLANs)
Wireless specifications	2x2 .11ac Wave 2
Default and maximum DRAM	4GB
Default and maximum flash	4GB
Inline PoE	4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+
Acoustic for Cisco 1100 Series ISRs	Not Applicable - Fanless design

Environmental Specifications

Operating humidity	5 to 85% relative humidity
Operating temperature	32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft
Altitude in China	0-6560 ft (0-2000 m)
Altitude in all other countries	0-10,000 ft (0-3050 m)

Transportation and Storage

Nonoperating temperature	-40 to 158°F (-40 to 70°C)
Nonoperating humidity	5 to 95% relative humidity (noncondensing)
Nonoperating altitude	0 to 15,000 ft (0 to 4570m)

Frequently Asked Questions

What are your advantages?

We are a professional supplier in the network equipment field with over five years of experience. We supply original brand products at competitive prices and provide 24-hour free consulting with our professional sales team, technical support, and after-sales department.

What's the warranty of your products?

One year warranty (except for used products).

What's the MOQ for your products?

Minimum order quantity: 1 piece.

What's the payment terms?

Pre T/T, PayPal, Western Union, or Alibaba Trade Assurance order.

What's the package?

Original packing with additional protective outer box to ensure goods arrive in perfect condition during transportation.
