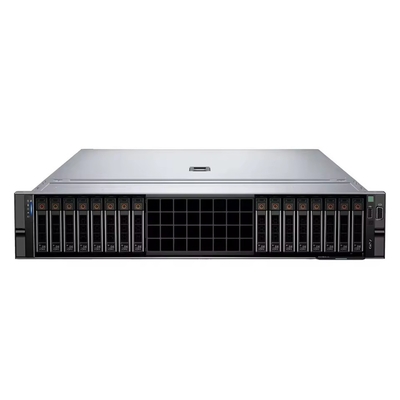

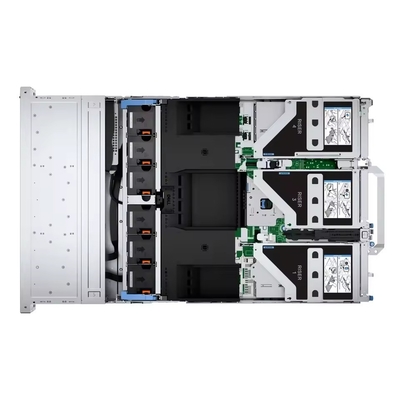

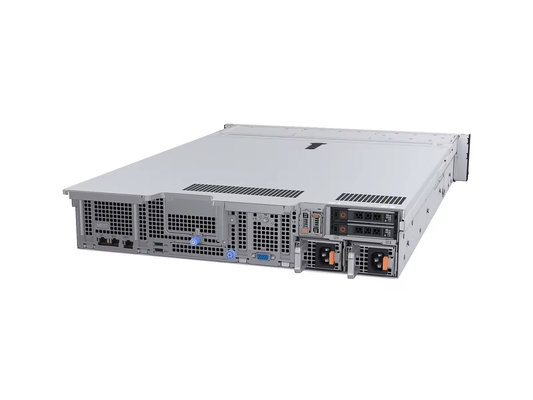

Servers Private Mold PowerEdge R760 R760xs R760xd2 and R760xa SFF Nvme Boyu Chassi 2U Rack Computer for Server Trays

MOQ:	2 pieces
Price:	CN¥23,104.64/pieces >=2 pieces

Detail Information

Product Description

Detail Information

Private Mold:

Yes

Products Status:

Stock

Type:

Rack

Processor Main Frequency:

Servers

Processor Type:

Servers

Brand Name:

Model Number:

R760XS

Place Of Origin:

Shanghai, China

Product Name:

Servers

Size:

Customized Size

Color:

Customizable

MOQ:

1PCS

Warranty:

1year

Lead Time:

1-3 Working Days

Package:

Original Packaging

Product Description

Specification

Product Description

Feature	Technical Specifications
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory	• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only
Storage controllers	• Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E

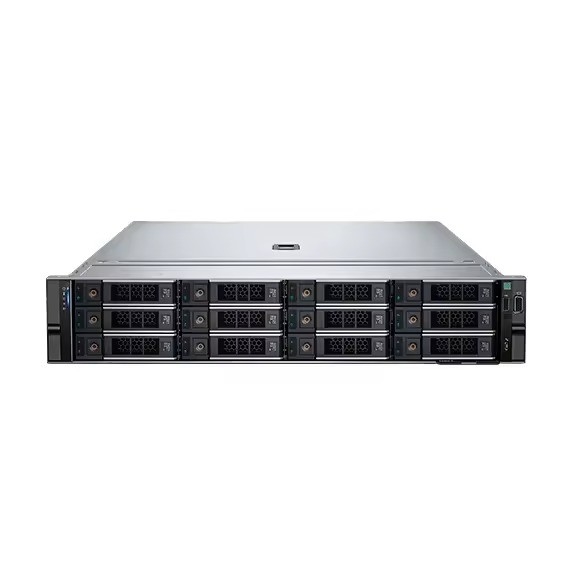

Drive Bays	Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power Supplies	• 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1400 W Platinum AC/240 mixed mode • 2400 W Platinum AC/240 mixed mode
Cooling Options	Air cooling, optional processor liquid cooling
Fans	• Standard fan/High performance SLVR fan/High performance GOLD fan • Up to six hot plug fans
Dimensions	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel
Form Factor	2U rack server
Embedded Management	• iDRAC9 • iDRAC Service Module • iDRAC Direct• Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
GPU Options	Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators
Front Ports	• 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA

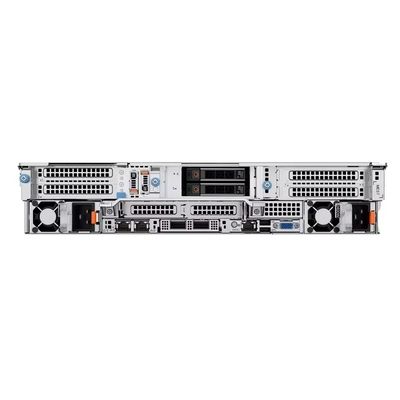

Rear Ports	• 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA
Internal Ports	1 x USB 3.0
PCIe	Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
