H.265 P2P 8Ch Waterproof IP Camera POE NVR Kit Surveillance Camera System

MOQ:	2 pieces
Price:	CN¥1,745.45/pieces >=2 pieces

Detail Information

Private Mold:

Products Status:

Stock

Brand Name:

Place Of Origin:

Shanghai, China

Product Name:

CCTV Camera System

Size:

Customized Size

Color:

Customizable

Highlight:

Product Description

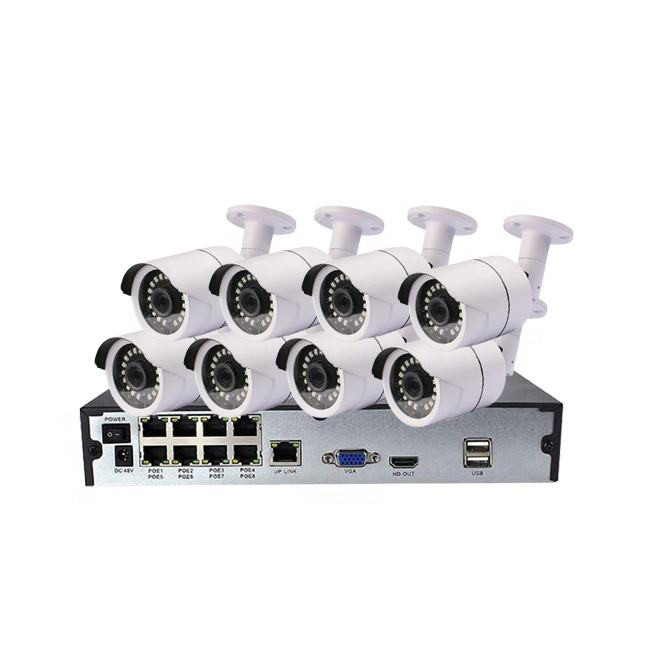

Hot Sale H.265 P2P 8Ch Night Vision Waterproof IP Camera POE NVR Kit CCTV Security System

Product Description

Specification

Model No.			NST-NVR7508P
System	Main processor	Hi3798M
		Operating system	Embedded LINUX operating system
		System resource	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operation interface	16-bit true color graphic menu operation interface, support mouse operation
Interface		Display screen	1/4/8/16
Video	Video input (IP)	45M/84M/43M/16960P
		Video standards	PAL(625TVL,50f/s);NTSC(525TVL,60f/s)
		Video compression	H.265/H.264
		Display quality	Max:4K
		Playback quality	5M/4M/3M/960P
		Decode	25M/24M/43M/4960P
		Motion detection	Depend on camera
Audio	Audio compression	G711A
Audio		intercom	Unsupport
Record and playback	Record mode	Manual>Alarm>Video Detection>Continuous
		Local playback	25M/24M/43M/4960P
		Search mode	search by Time/calendar/event/channel
Storage and back up	Record Storage	HDD , network
Storage and back up		Backup mode	Network backup, USB hard disk, USB burner, SATA burner
Interface	Video output	1ch HD HD output(can be extended to support VGA)
		Audio I/O	0/ 0
		Alarm I/O	0/0
		Network interface	1* 10M/100M Adaptive Ethernet port,8 POE ports
		USB interface	2*USB2.0 port
		Hard disk	1*SATA (extensible 2 SATA interface) (Up to 8TB for each disk)
other	PTZ control	Control PTZ device by network
		ONVIF	Available
		Power supply	48V /3 A
		Power Consumption	<10W(Without HDD)
		Work environment	Temperature:0℃- + 55℃ , Humidity:10% - 90%RH , Atm:86kpa - 106kp
		Dimension	L250W220H45MM
		Weight	1.2KG
