G7500 Video Conferencing And Content-Sharing Solution For Medium And Large Conference Rooms

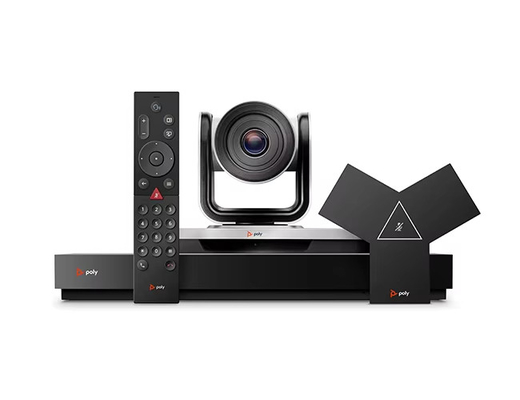

PACKAGE INCLUDES • G7500 codec

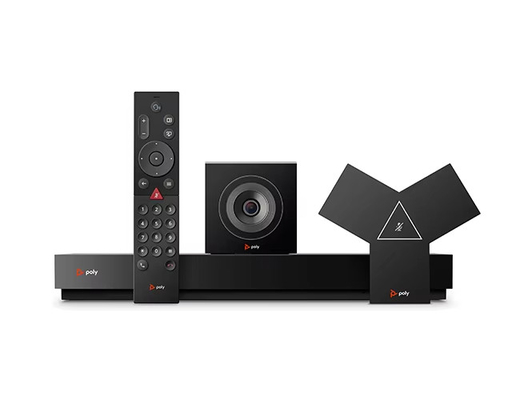

• EagleEye IV camera or EagleEye Cube USB
• Poly IP Microphone
• Bluetooth® remote control
• Cable bundle

VIDEO STANDARDS AND PROTOCOLS

• H.264 AVC, H.264 High Profile, H.264 SVC, H.265, RTV
• H.239
• H.264 video error concealment

VIDEO INPUT
• 1x HDCI
• 1x HDMI • 1x USB

VIDEO OUT
• 2x HDMI
• Touch display compatible

PEOPLE VIDEO RESOLUTION
• 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
•720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF(352 x 240), CIF (352 x 288)
• From 64 kbps
• QCIF (176 x 144) from 64 kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps

CONTENT SHARING
• Poly Content App support
• Apple AirPlay
• Miracast
• 1x HDMI input

AUDIO INPUT
• Up to three 1x IP microphone arrays
• Up to 4x Clink2 Microphones or SoundStructure (using Poly Microphone IP Adapter)

• 1x HDMI
• 1x 3.5 mm stereo line-in

AUDIO OUTPUT
• 1x HDMI
• 1x 3.5 mm stereo line-out

OTHER INTERFACES • 3x USB 3.0
• 1x USB-C1
• 1x RS-232, 8-pin mini-DIN
• Bluetooth 5.0
• WiFi 802.11a/b/g/n/ac (MIMO) Multichannel Concurrency

AUDIO STANDARDS AND PROTOCOLS
• 22 kHz bandwidth with Polycom Siren 22 technology, G.719 (M- Mode)
• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C

• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A

NETWORK
• IPv4 support
• 1x 10/100/1G Ethernet
• Auto-MDIX
• 3x 10/100/1G LLN supporting POE+/PSE
• H.323 and/or SIP up to 6 Mbps
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• RS232 with REST and CLI API support
• Web Proxy support—Basic, Digest and NTLM
• Simple Certificate Enrollment Protocol (SCEP)

OPTIONS

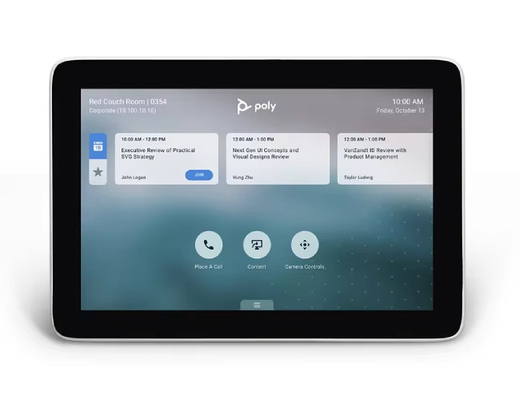

• Poly TC8
• Poly IP Table Microphone
• Poly Microphone IP Adapter
• EagleEye Cube USB
• EagleEye Director II
• EagleEye Producer

ELECTRICAL
• Auto sensing power supply • Typical operating voltage/power - 37VA @ 120V @ 60 Hz - 37VA @ 230V @ 50/60 Hz
• Typical BTU/h: 65

PHYSICAL CHARACTERISTICS
• G7500 base box - 13.75" L x 1.5" H x 5.5" D
- 2.1 lbs

WARRANTY
• One-year return to factory parts and labor 1
For future use Certain features may only be available with certain apps or in Poly Video mode
