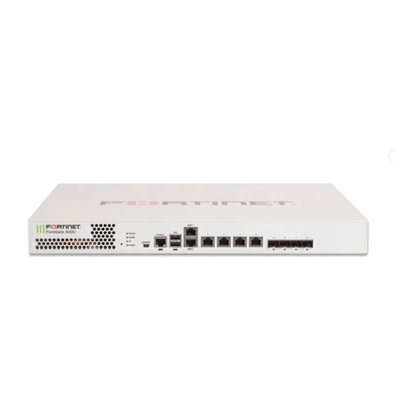

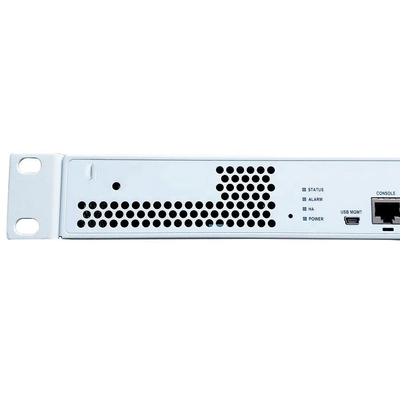

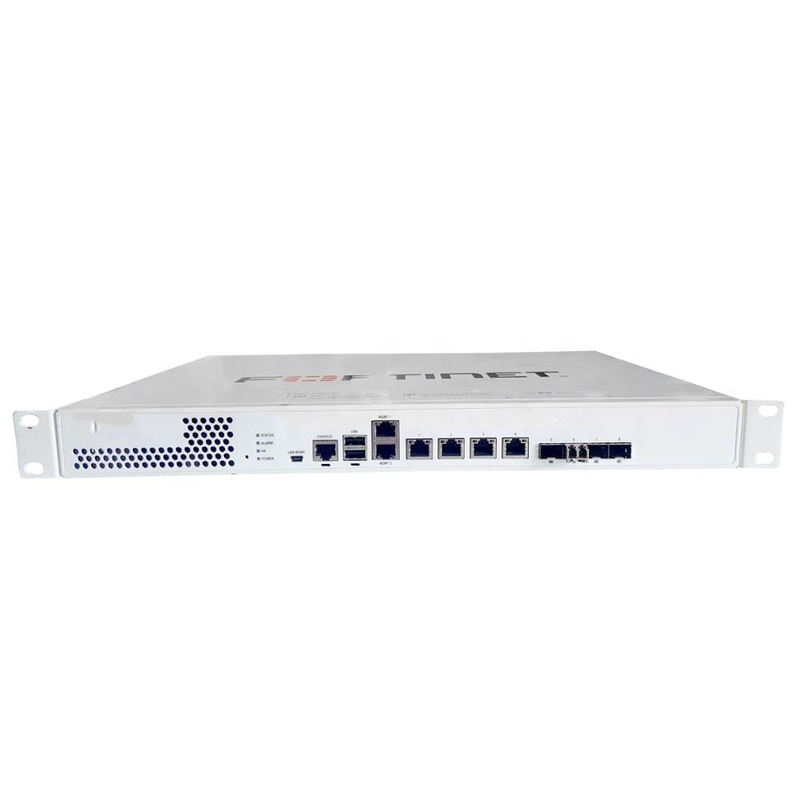

New Original FortiGate-300D Fortinet Security Appliance Firewall FG-300D

Hardware Specifications

• Ports:
  • RJ45 Ports: 6 x 1 Gigabit Ethernet RJ45 ports, 2 x Gigabit Ethernet RJ45 management ports.
  • SFP Slots: 4 x Gigabit Ethernet SFP slots.
  • USB Ports: 2 x USB ports.
  • Console Port: 1 x RJ45 console port.
• Form Factor: 1U Rack-mounted.
• Dimensions: Height x Width x Length: 1.73 x 17 x 12.68 inches / 44 x 432 x 322 mm.
• Weight: 10.5 lbs (4.8 kg).
• Power:
  • Power Input: AC 100 - 240V, 50 - 60Hz.
  • Power Consumption (Average/Maximum): 106W/194W.
  • Current (Maximum): 110V/4A, 220V/2A.
  • Heat Dissipation: 660 BTU/h.
• Local Storage: 120GB SSD.

System Performance

• Firewall Throughput:
  • 1518/512/64 Byte UDP Packets: 8/8/8 Gbps.
  • Firewall Latency (64 Byte UDP Packets): 3 μs.
  • Firewall Throughput (Packets per Second): 12 Mpps.
• Concurrent Sessions (TCP): 6,000,000.
• New Sessions/Second (TCP): 200,000.
• Firewall Policies: 10,000.
• IPsec VPN Throughput (512 Byte): 7 Gbps.
• Gateway-to-Gateway IPsec VPN Tunnels: 2,000.
• Client-to-Gateway IPsec VPN Tunnels: 50,000.
• SSL-VPN Throughput: 350 Mbps.
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 500.
• SSL Inspection Throughput (IPS, http): 1.9 Gbps.
• Application Control Throughput (http64k): 4 Gbps.
• CAPWAP Throughput (http64k): 5.4 Gbps.
• IPS Throughput: 2.8 Gbps.

Other Specifications

• Virtual Domains (Default/Maximum): 10/10.
• Maximum Number of Switches Supported: 48.
• Maximum Number of FortiAPs (Total/Tunnel Mode): 515/256.
• Maximum Number of FortiTokens: 1,000.
• Maximum Number of Registered Endpoints: 600.
• High Availability Configurations: Active/Active, Active/Passive, Clustering.
• Operating Environment:
  • Operating Temperature: 0 – 40 °C.
  • Humidity: 20 - 90 % (non-condensing).
• Compliance and Certifications: FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB, ICSA Labs: Firewall, IPsec, IPS, Antivirus
