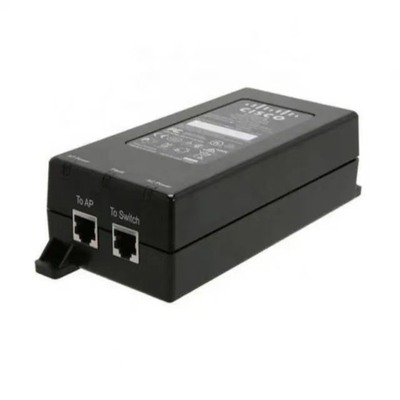

Original AIR-PWRINJ6 Power Injector 802.3at For Aironet Access Points

Name: Original AIR-PWRINJ6 Power Injector 802.3at For Aironet Access Points
Brand: Shanghai Apying Technology Co., Ltd.
SKU: AIR-PWRINJ6
Price: 10.00 USD
Availability: InStock

Model Number:	AIR-PWRINJ6
MOQ:	2 pieces
Price:	CN¥872.73/pieces 2-19 pieces

Detail Information

Product Description

Detail Information

Private Mold:

Products Status:

Stock

Application:

Desktop, Server

Rating Power:

< 150W

Interface Type:

20 + 4Pin

Brand Name:

Place Of Origin:

Beijing, China

Product Name:

Power Supply

Condition:

100% Original

Warranty:

1 Year

MOQ:

1 Piece

Application:

Server, Desktop

Shipping:

DHL/UPS/FEDEX

Lead Time:

3~7 Days

Highlight:

Original AIR-PWRINJ6 Power Injector

Power Injector 802.3at

Aironet Access Points Power Injector

Product Description

New Original AIR-PWRINJ6 Power Injector (802.3at) for Aironet Access Points

Product Description

Specification

Product Description

Dimensions (W, H, L)	65 mm x 36 mm x 140 mm
Data Rates	10/100/100 Mbps
PoE Output	Pin Assignment and Polarity:
		4/5 (+), 7/8 (-)
		Output Power Voltage: 55V DC
User Port Power	30 Watts
Input Power Requirements	AC Input Voltage: 100 to 240V AC
		AC Input Current: 0.67 A @ 100 - 240 V AC
		AC Frequency: 50 to 60 Hz
Weight	Model 1: 0.44 lbs (200 g)
Weight		Model 2: 0.47 lbs (215 g)
Connectors	Shielded RJ-45, EIA 568A and 568B
Environmental Conditions	Operating Ambient Temperature:
		-4ºF to 104ºF (-20ºC to 40ºC) at 30 W
		-4ºF to 122ºF (-20ºC to 50ºC) at 25 W
		Operating Humidity:
		Maximum 90%, Non-condensing
		Storage Temperature:
		-4ºF to 158ºF (-20ºC to 70ºC)
Reliability	MTBF: 100,000 hrs @ 25ºC
Thermal Rating	20 BTU/Hr @ 240 V AC
Regulatory Compliance	IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant
Electromagnetic Emission and Immunity	FCC Part 15, Class B
		EN 55022 Class B (Emissions)
		EN 55024 (Immunity)
		VCCI
Safety	UL 60950-1
Safety		IEC/EN 60950-1
Stacking restrictions	Do not stack. Do not bundle the power injector and AC power
