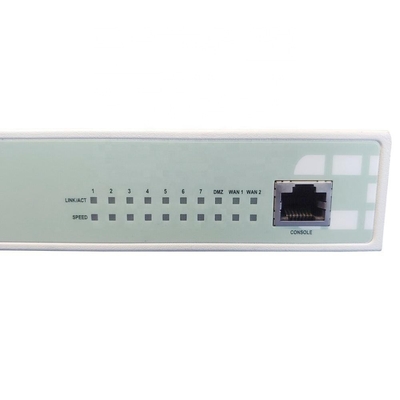

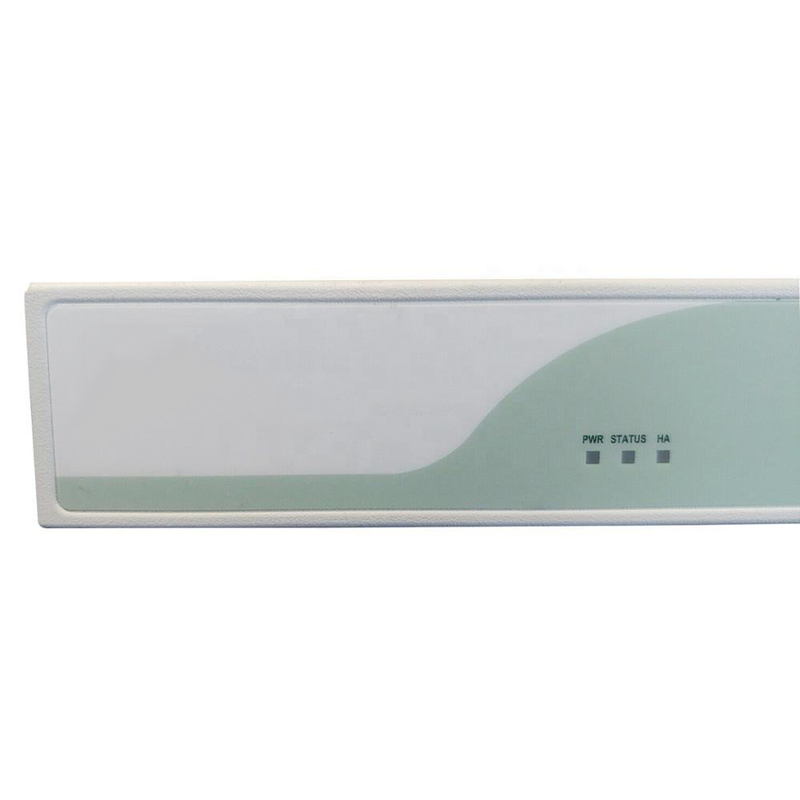

FG-60F FortiGate-60F Fortinet Firewall Security Appliance Firewall

Hardware Specifications

• Ports:
  • GE RJ45 WAN Ports: 2.
  • GE RJ45 DMZ Port: 1.
  • GE RJ45 FortiLink Ports: 2.
  • GE RJ45 Internal Ports: 5.
  • USB Port: 1.
  • Console (RJ45): 1.
• Form Factor: Desktop / Wall-mounted / 1U Rack-mounted.
• Dimensions: Height x Width x Length: 3.85 x 21.6 x 16 cm.
• Weight: 1.01 kg.
• Power:
  • Power Input: AC 100 - 240V, 50 - 60Hz.
  • Maximum Current: 115VAC/0.2A, 230VAC/0.1A.
  • Power Consumption (Average/Maximum): 17.0W/18.5W.
  • Heat Dissipation: 63.1 BTU/hr.

System Performance

• Firewall Throughput:
  • 1518/512/64 Byte UDP Packets: 10/10/6 Gbps.
  • Firewall Latency (64 Byte UDP Packets): 4 μs.
  • Firewall Throughput (Packets per Second): 9 Mpps.
• Concurrent Sessions (TCP): 700,000.
• New Sessions/Second (TCP): 35,000.
• Firewall Policies: 5,000.
• IPsec VPN Throughput (512 Byte): 16.5 Gbps.
• Gateway-to-Gateway IPsec VPN Tunnels: 200.
• Client-to-Gateway IPsec VPN Tunnels: 500.
• SSL-VPN Throughput: 900 Mbps.
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200.
• SSL Inspection Throughput (IPS, Avg. https): 3750 Mbps.
• SSL Inspection CPS (IPS, Avg. https): 3400.
• SSL Inspection Concurrent Session (IPS, Avg. https): 355,000.
• Application Control Throughput (http64k): 21.8 Gbps.
• CAPWAP Throughput (http64k): 1.5 Gbps.

Other Specifications

• Virtual Domains (Default/Maximum): 10/10.
• Maximum Number of FortiSwitches Supported: 16.
• Maximum Number of FortiAPs (Total/Tunnel Mode): 30/10.
• Maximum Number of FortiTokens: 500.
• Registered FortiClient Maximum Number: 200.
• High Availability Configurations: Active/Active, Active/Passive, Clustering13.
• Operating Environment:
  • Operating Temperature: 0 – 40 °C.
  • Storage Temperature: -35 – 70 °C.
  • Humidity: 10 – 90 % non-condensing.
• Compliance and Certifications: FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB, ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
